Linked
Wallet
Project Outline
5 Week Project
To design a long lasting wallet that minimizes bulk. Suited for consumers who need a wallet that uses minimal pocket space. Pushing the limits on materiality and the relationship between the two.
Summer 2024

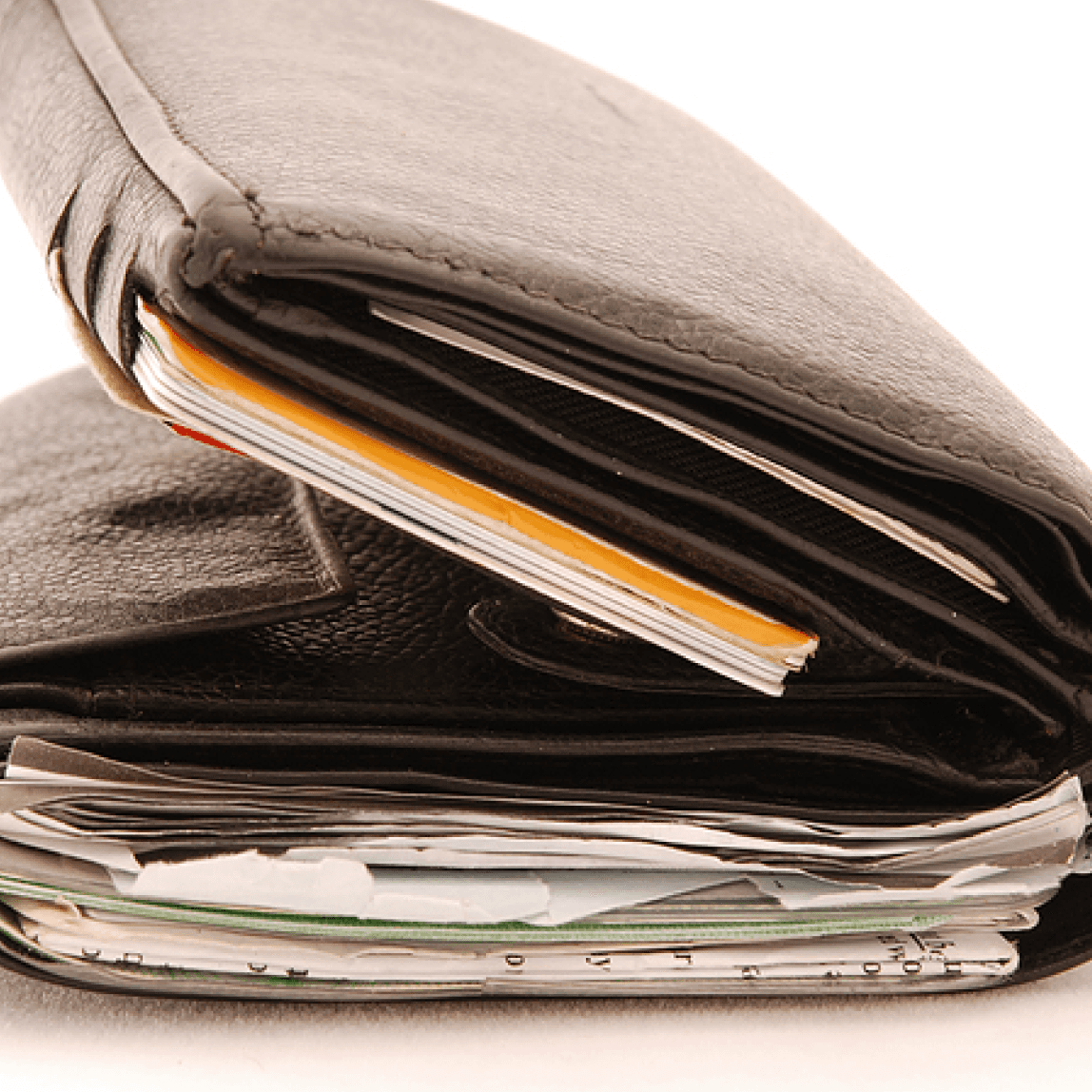

On average, users tend to carry 6-12 cards in their wallets
Most wallets tend to exceed 1.5 inches in thickness
Traditional wallets can last as little as 2 years

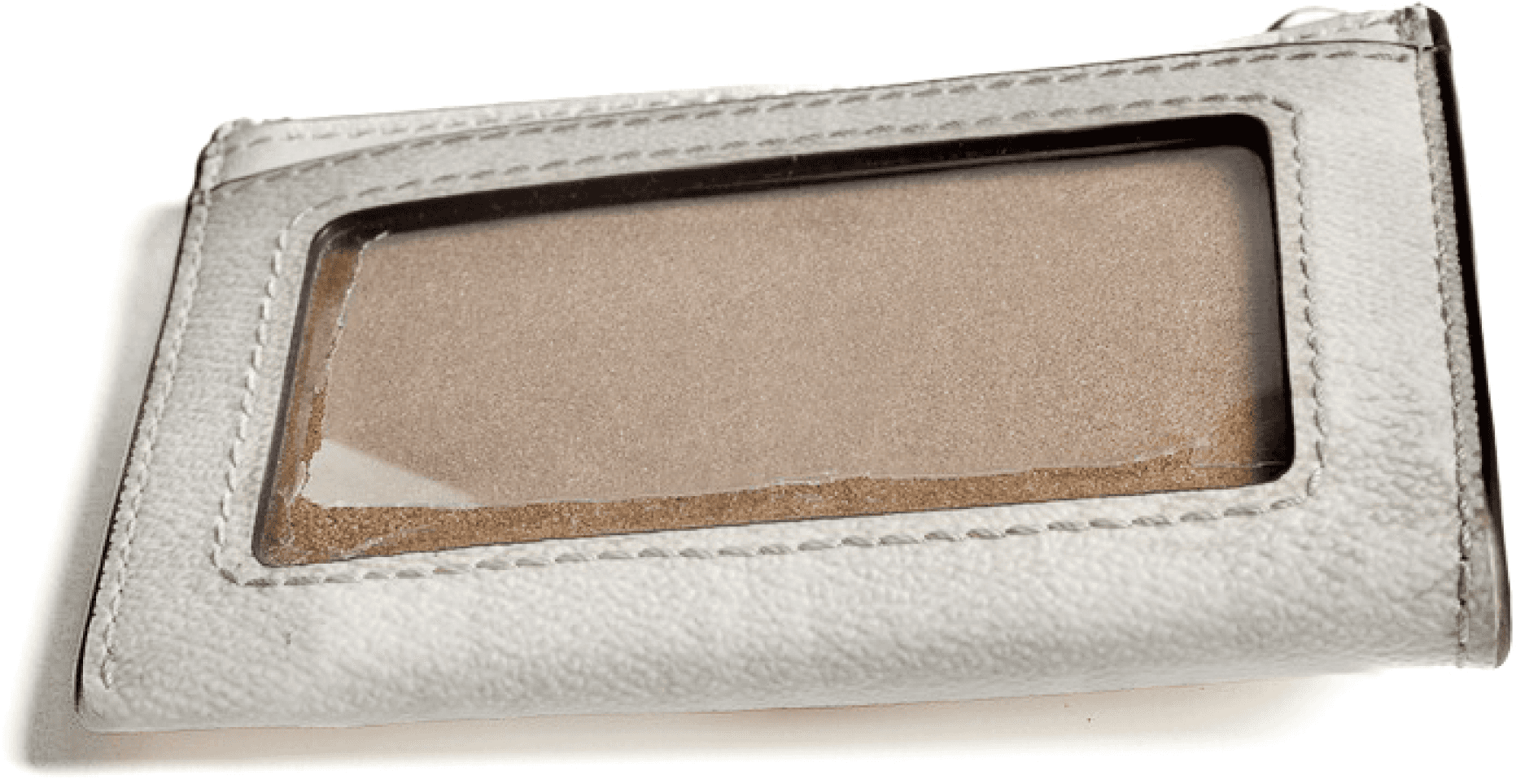

Small pockets that can barely hold 2-3 cards

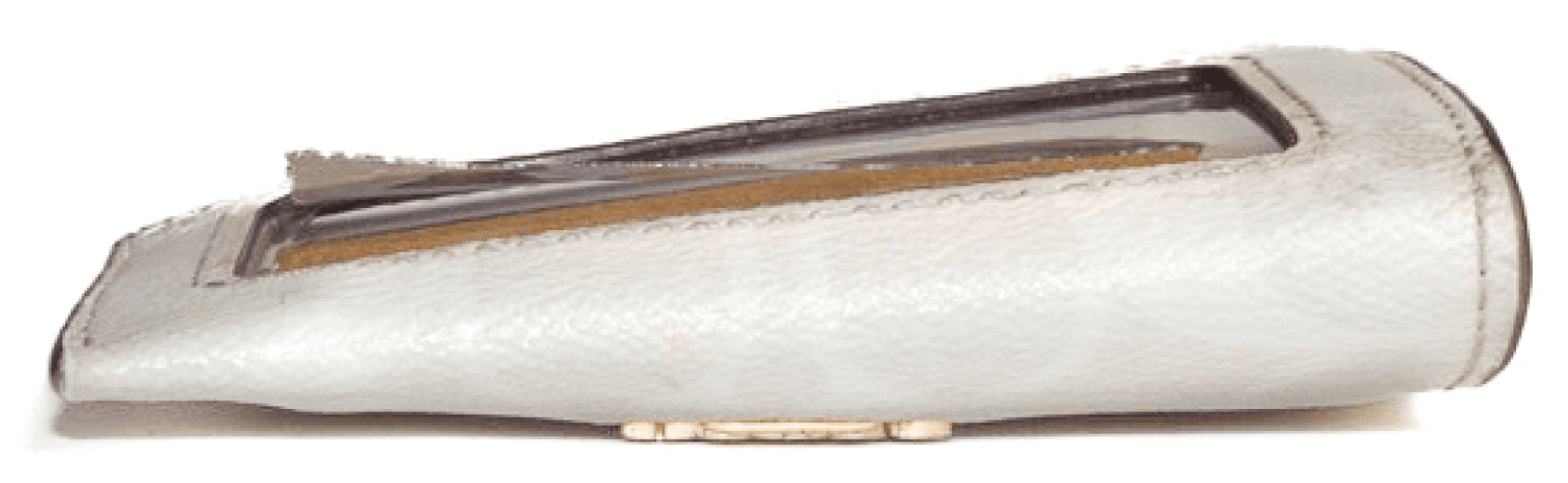

Prone to breaking

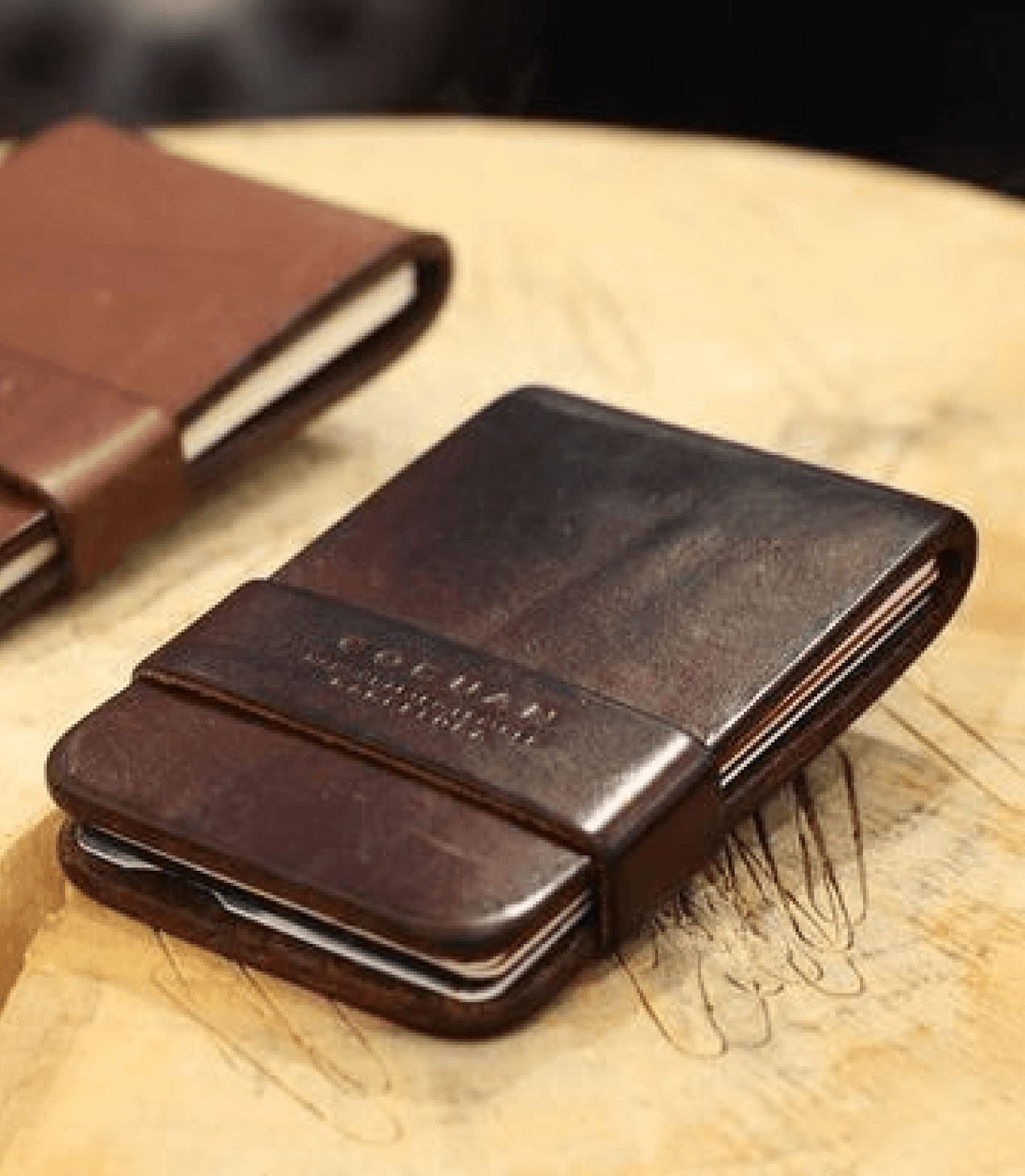

Bulky look

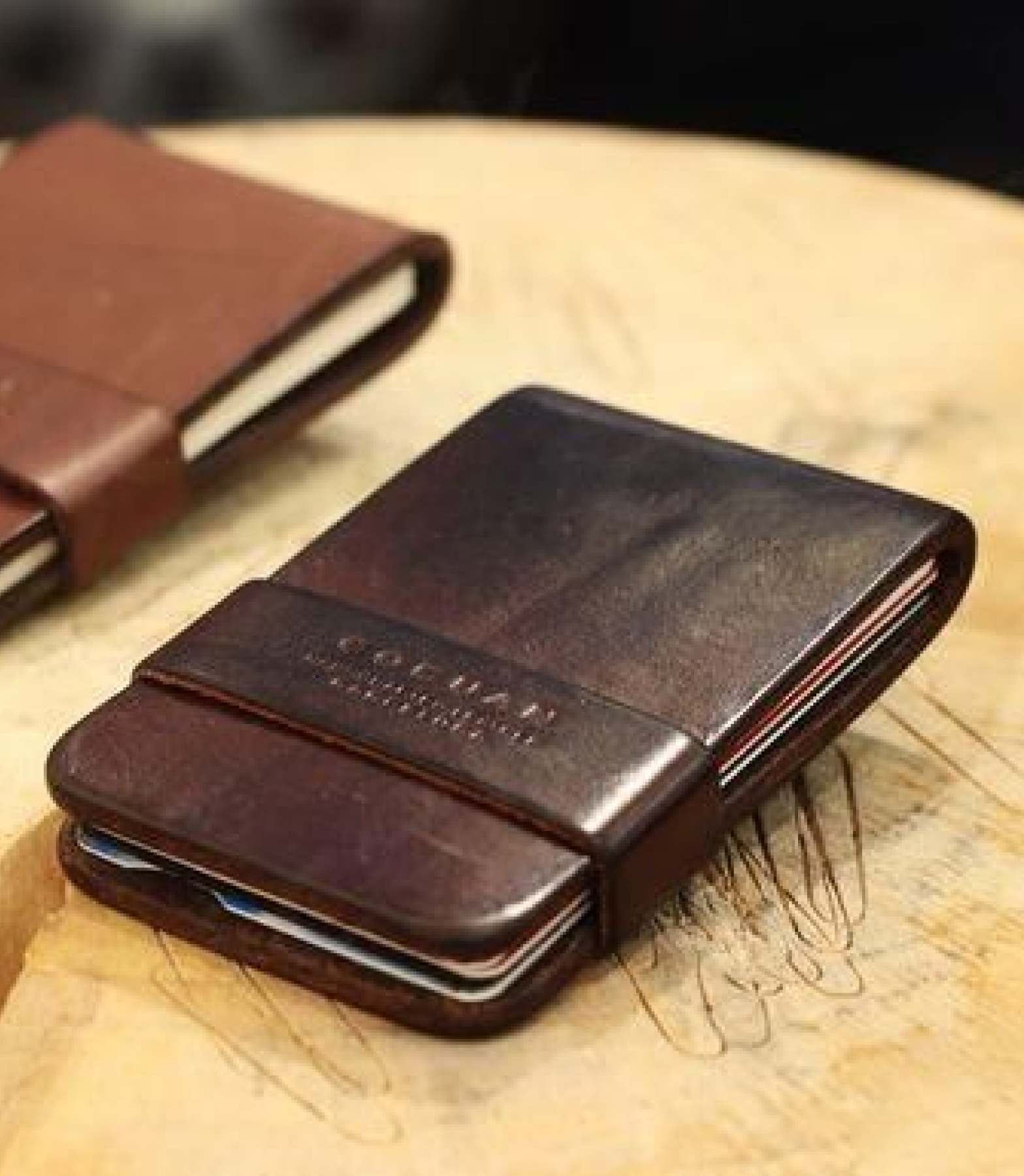

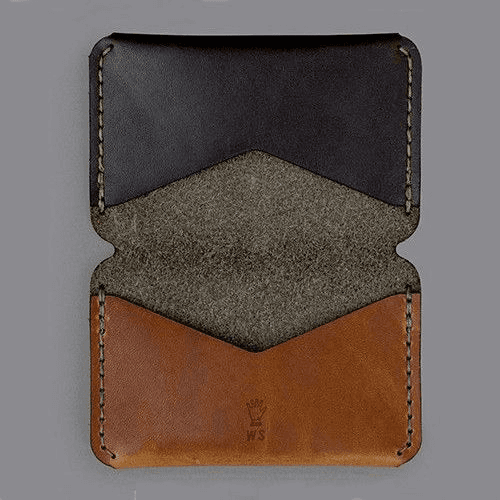

Leather
Durable and comfortable feel
Great resistant to wear and tear with a modern sleek look
Flexible and creates a strong grip

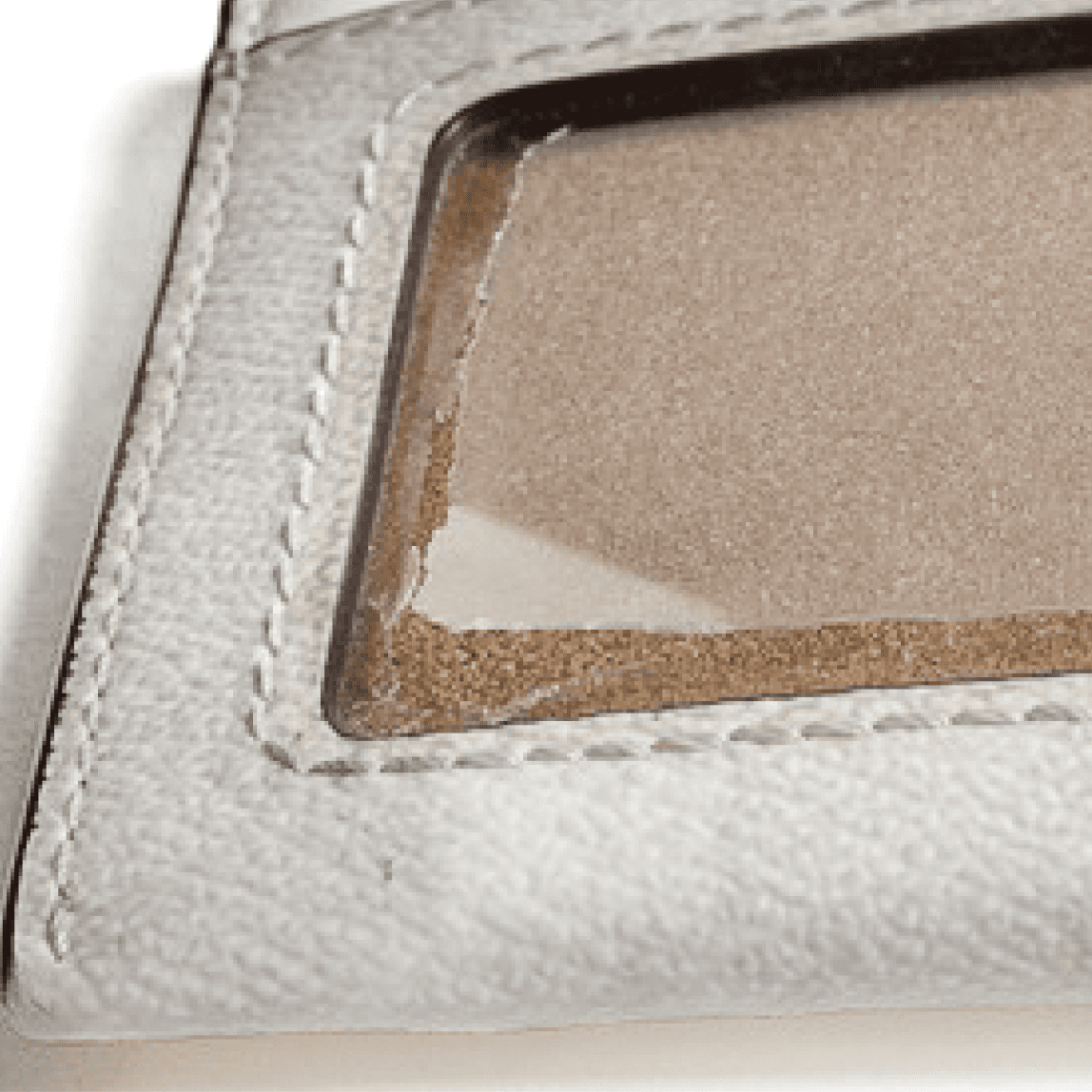

Important to sew to enhance durability
Metal

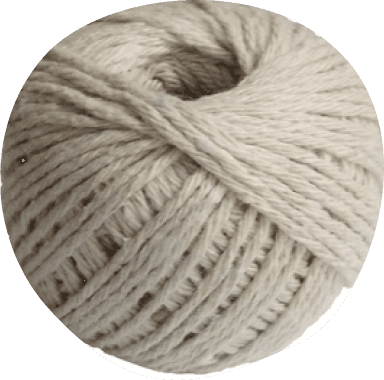

String

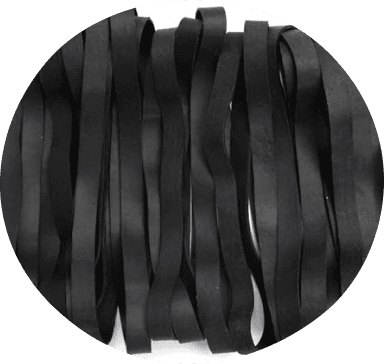

Rubber band

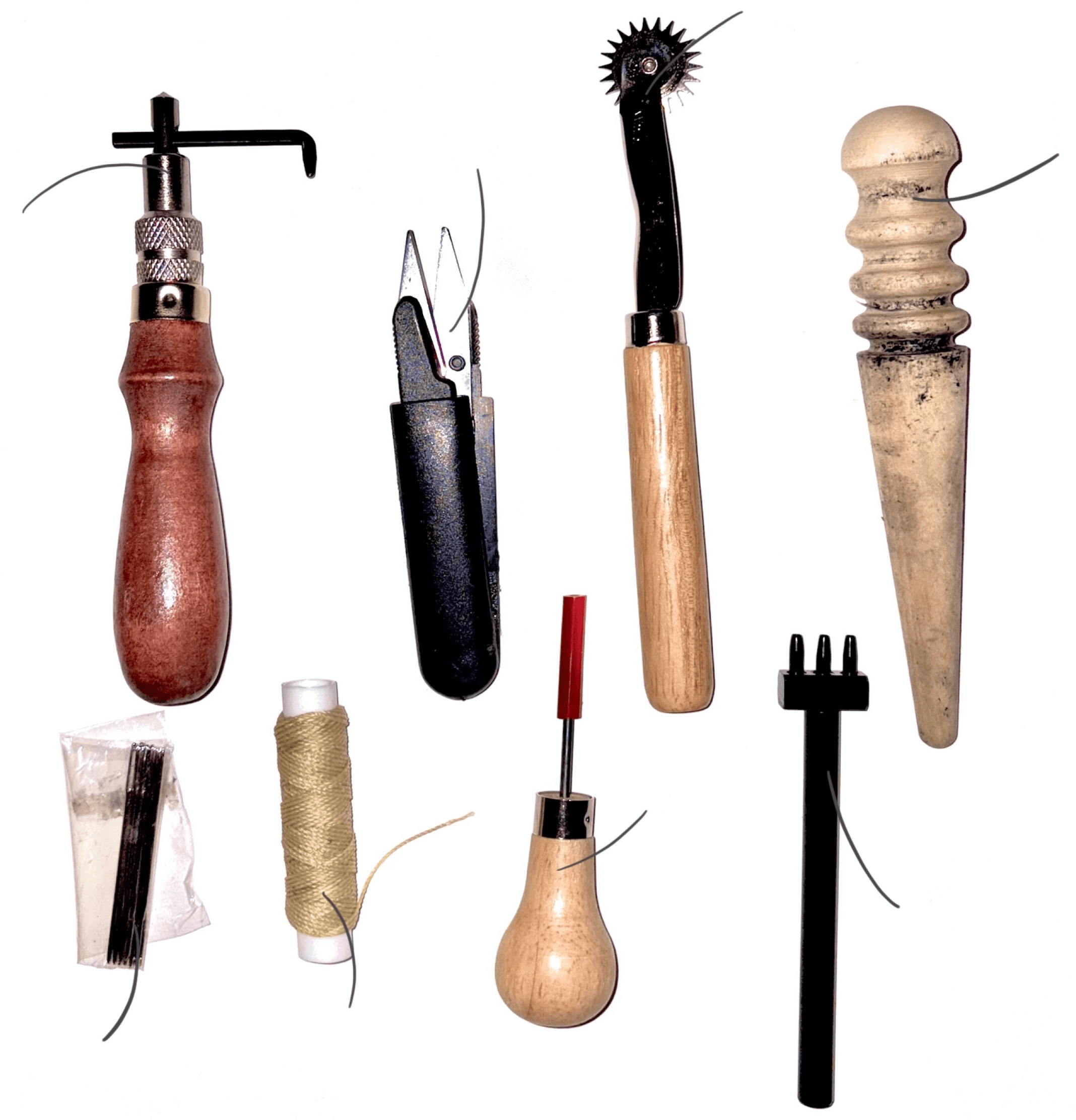

Adjustable Stitching Groover
Edge Burnisher
Stitching Chisel
Stitching Wheel
Scissors
Awl
Needles
Waxed Thread
Materials and Tools

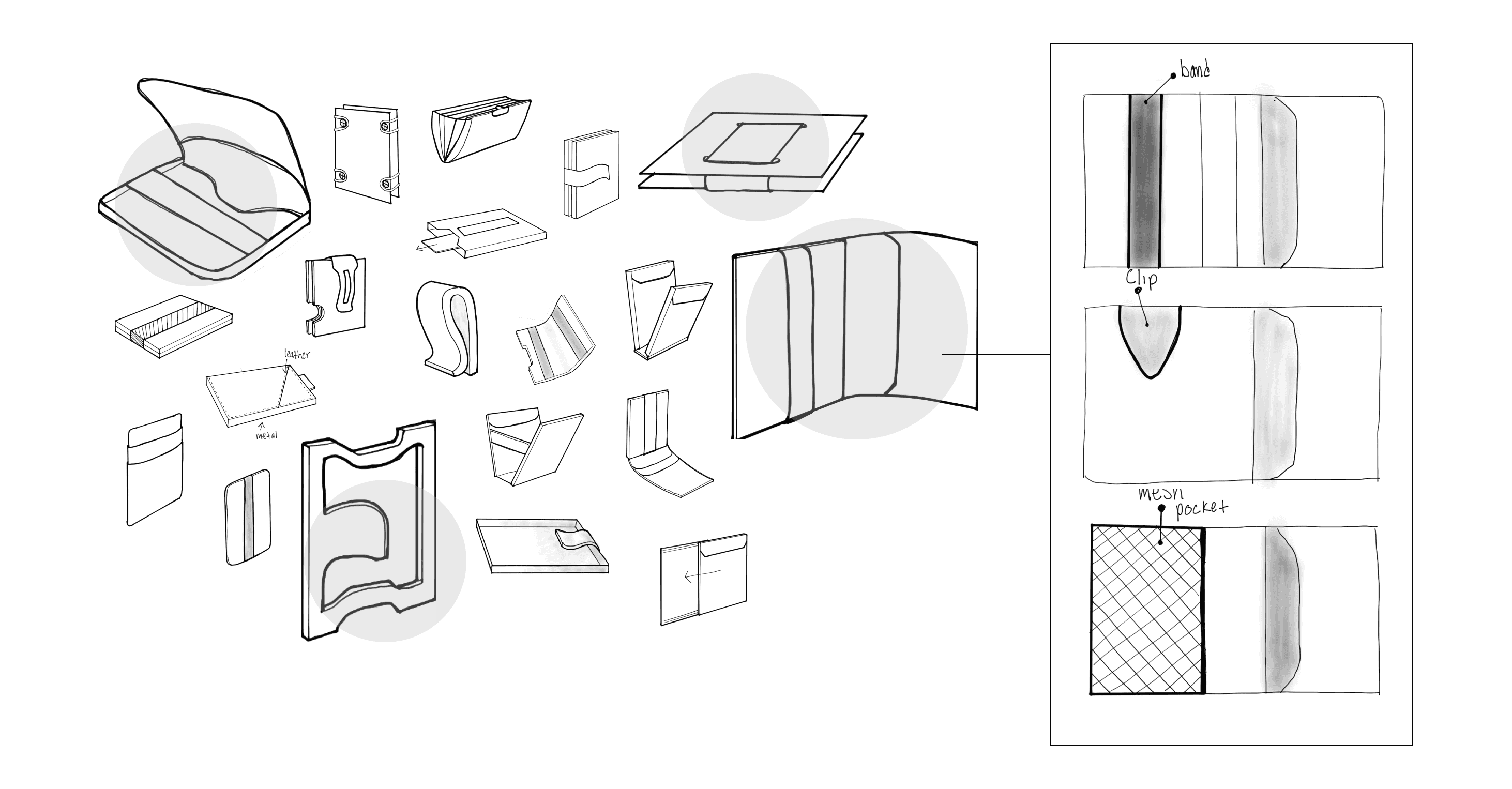

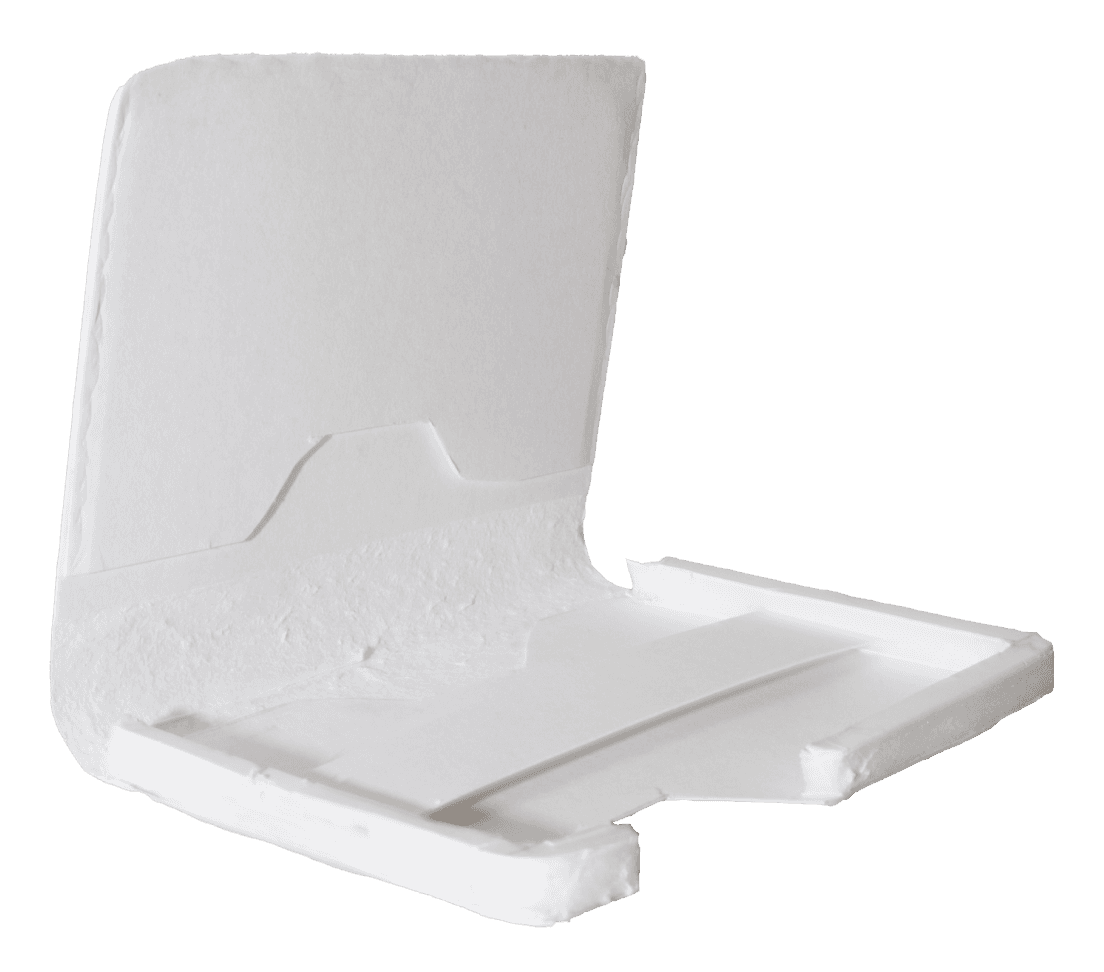

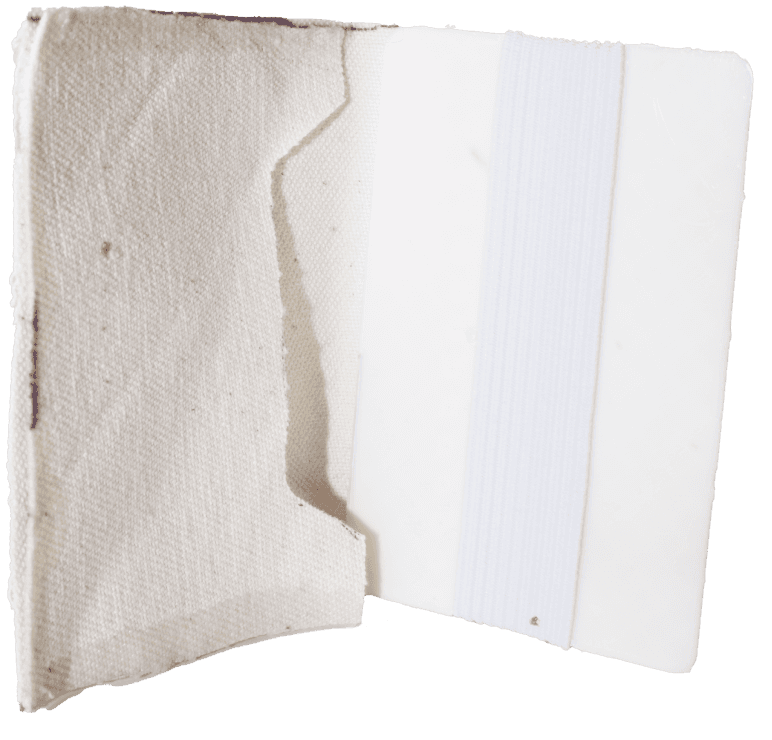

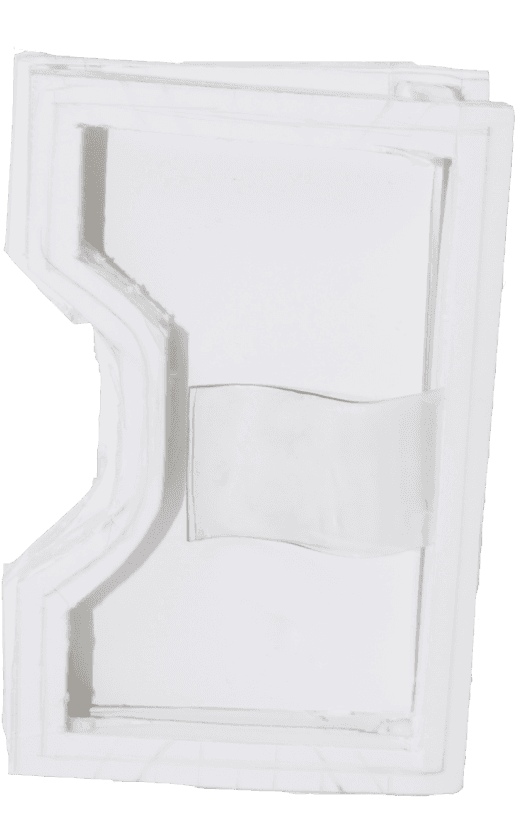

Quick Models and Notes
Not ideal with cards visible, clip wasn’t a stable idea
Cards slipped around by the band with no structure
Clip idea still didn’t work very well, shape was nice
Difficult to grab card, needs the same amount of cards to hold
Held cards well and could be used efficiently. Structure was strong
*This design was chosen to expand on

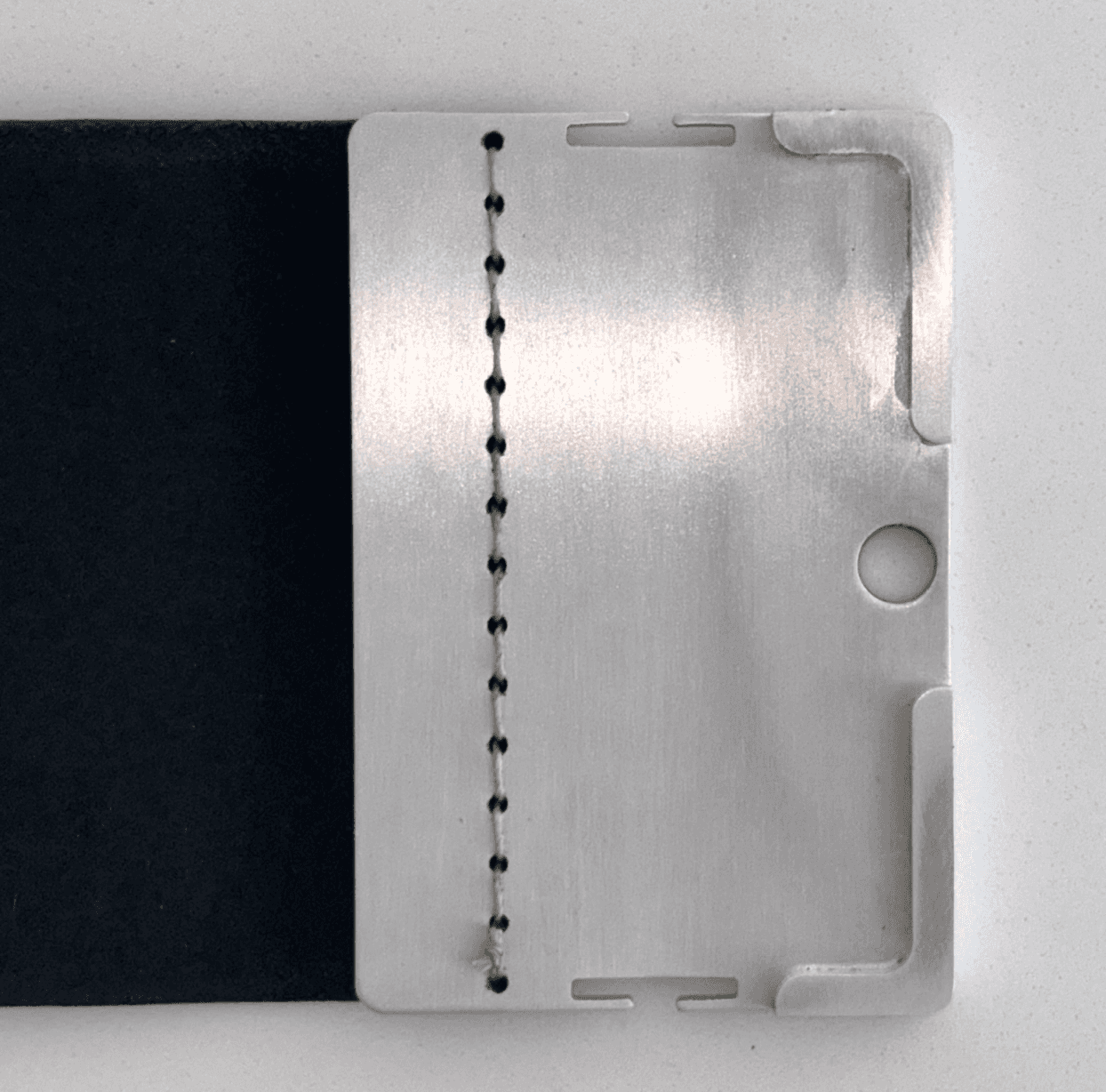

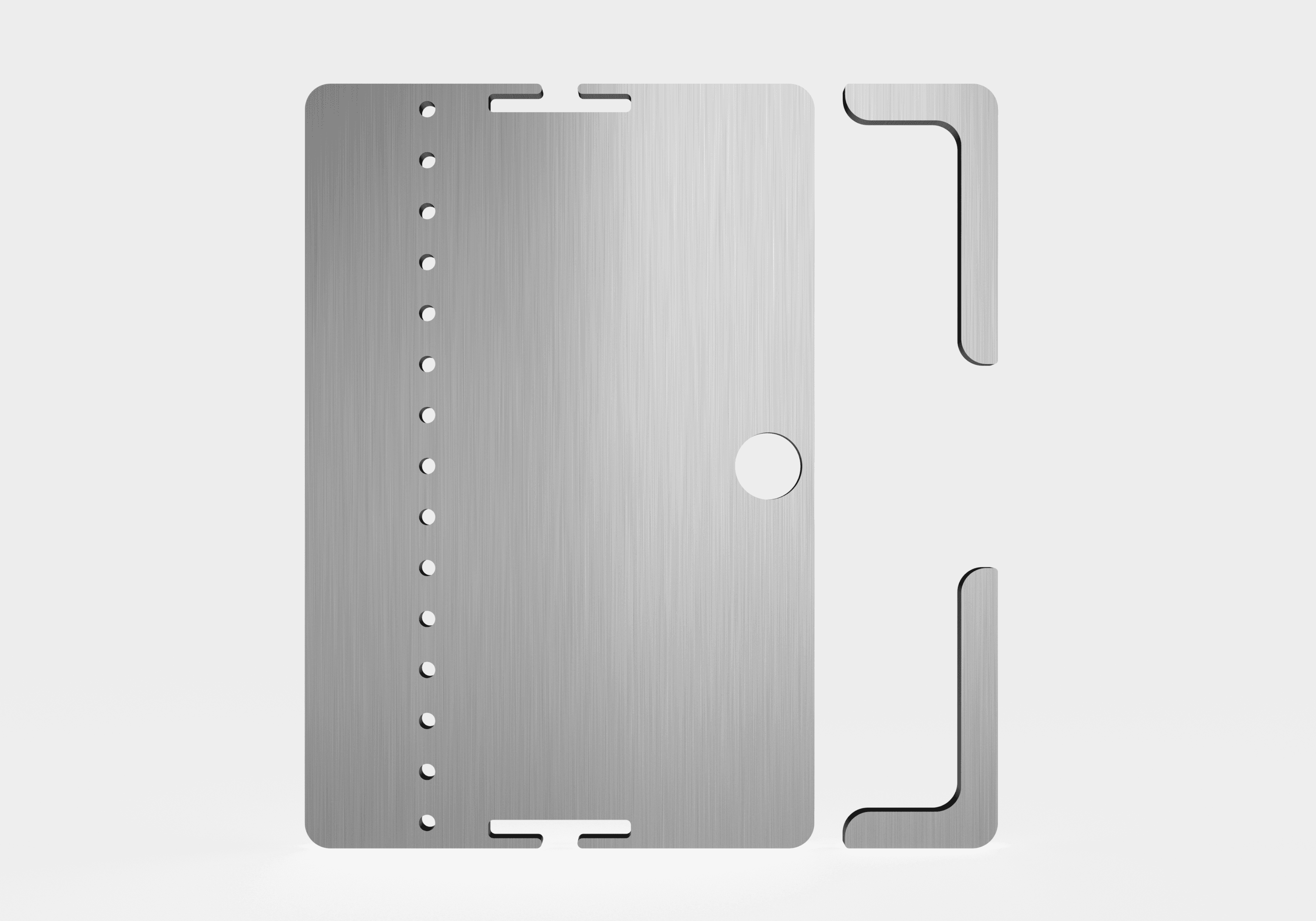

Base
6061 T6 Aluminum

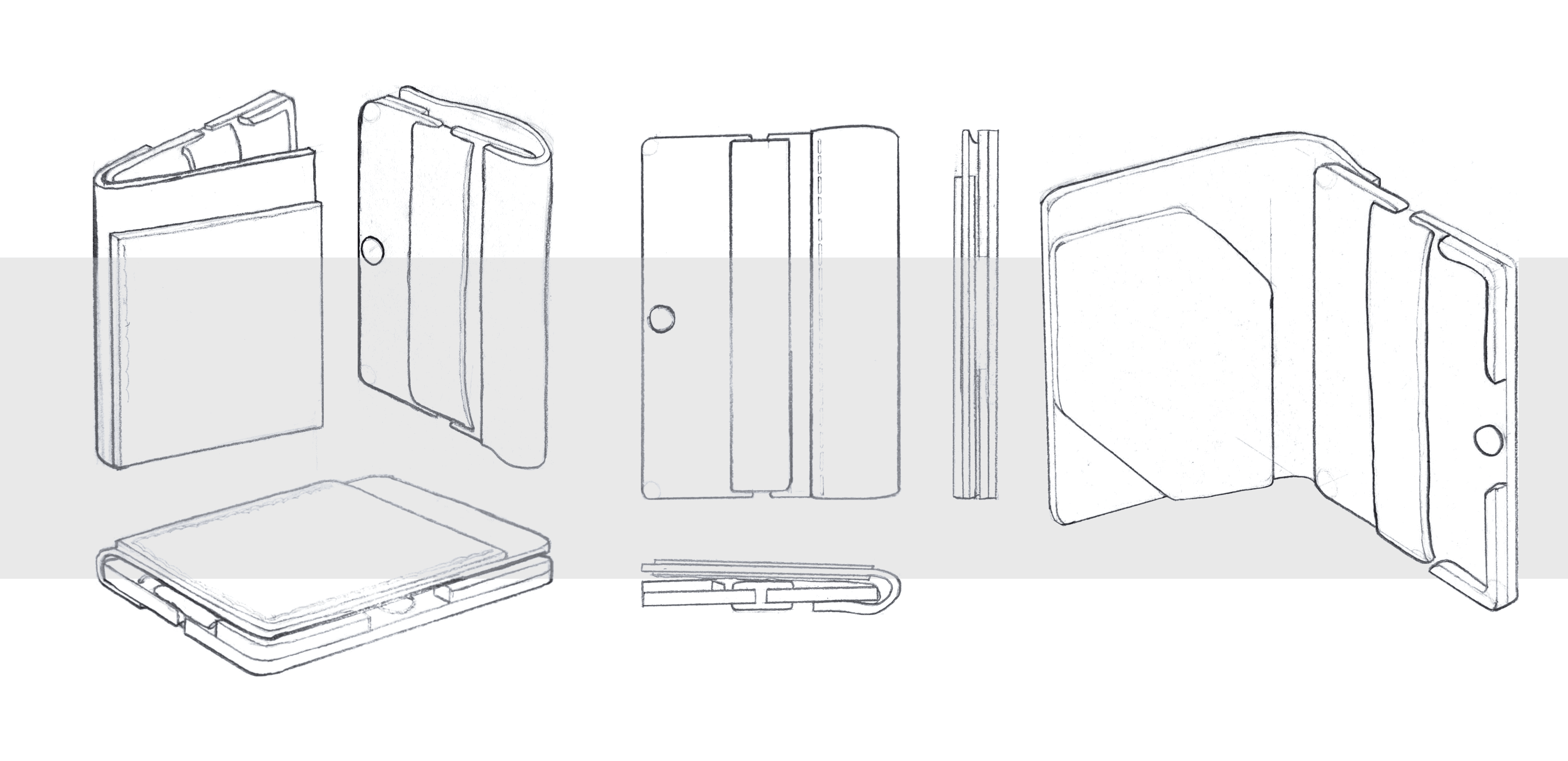

Design
CNC machine used to cut out the base of the wallet. Aluminum was picked because of it’s durability and long lasting qualities.
Holes implemented into the design to allow for hand sewing to attach the leather.
Inserts to secure the rubber band around the base.
Process
This process takes time and dedication. Many tools and techniques were used in the process.
The leather pockets have the freedom to be multiple different style cut.

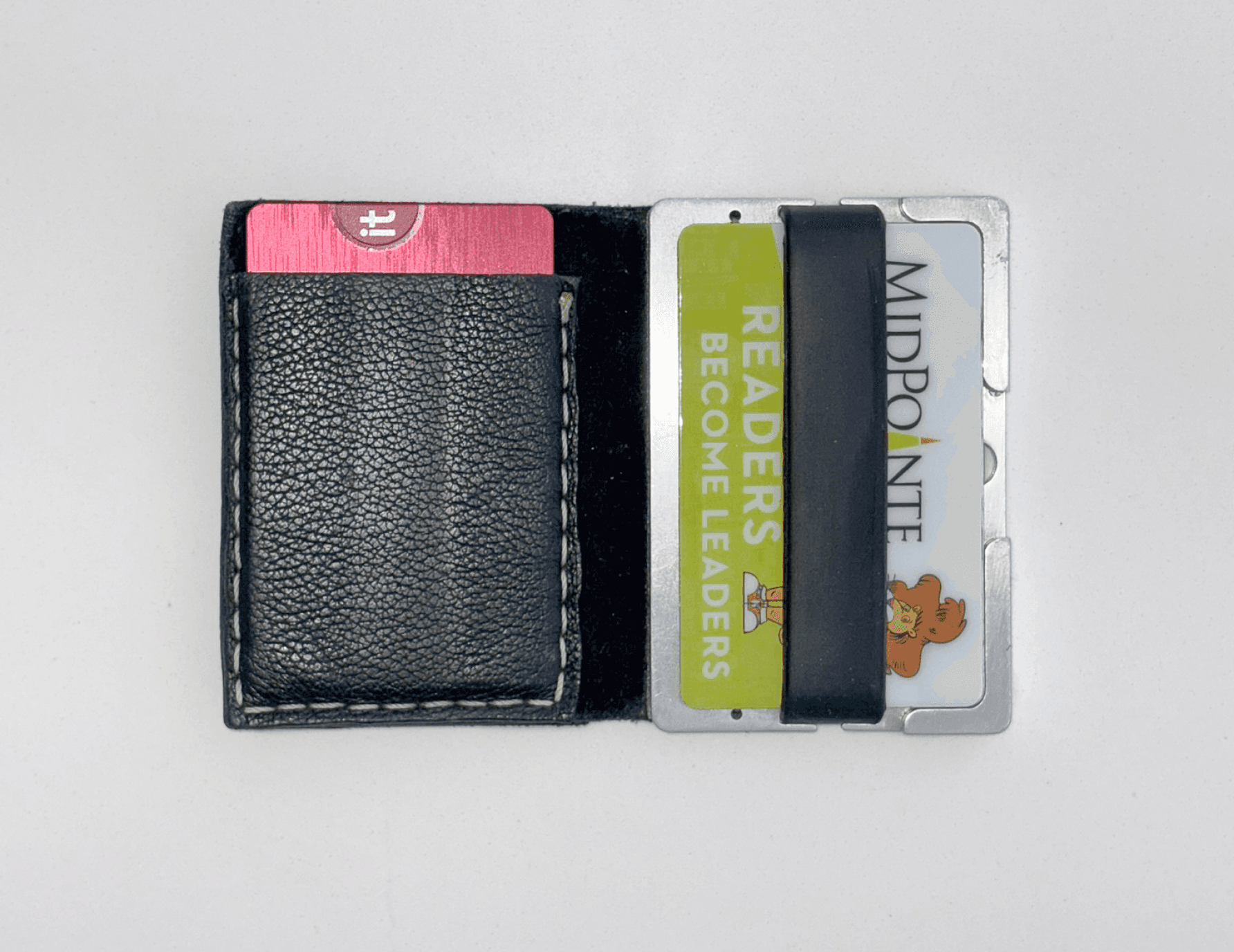

“L” pieces glued onto the base. The purpose for these is to keep the cards in place.

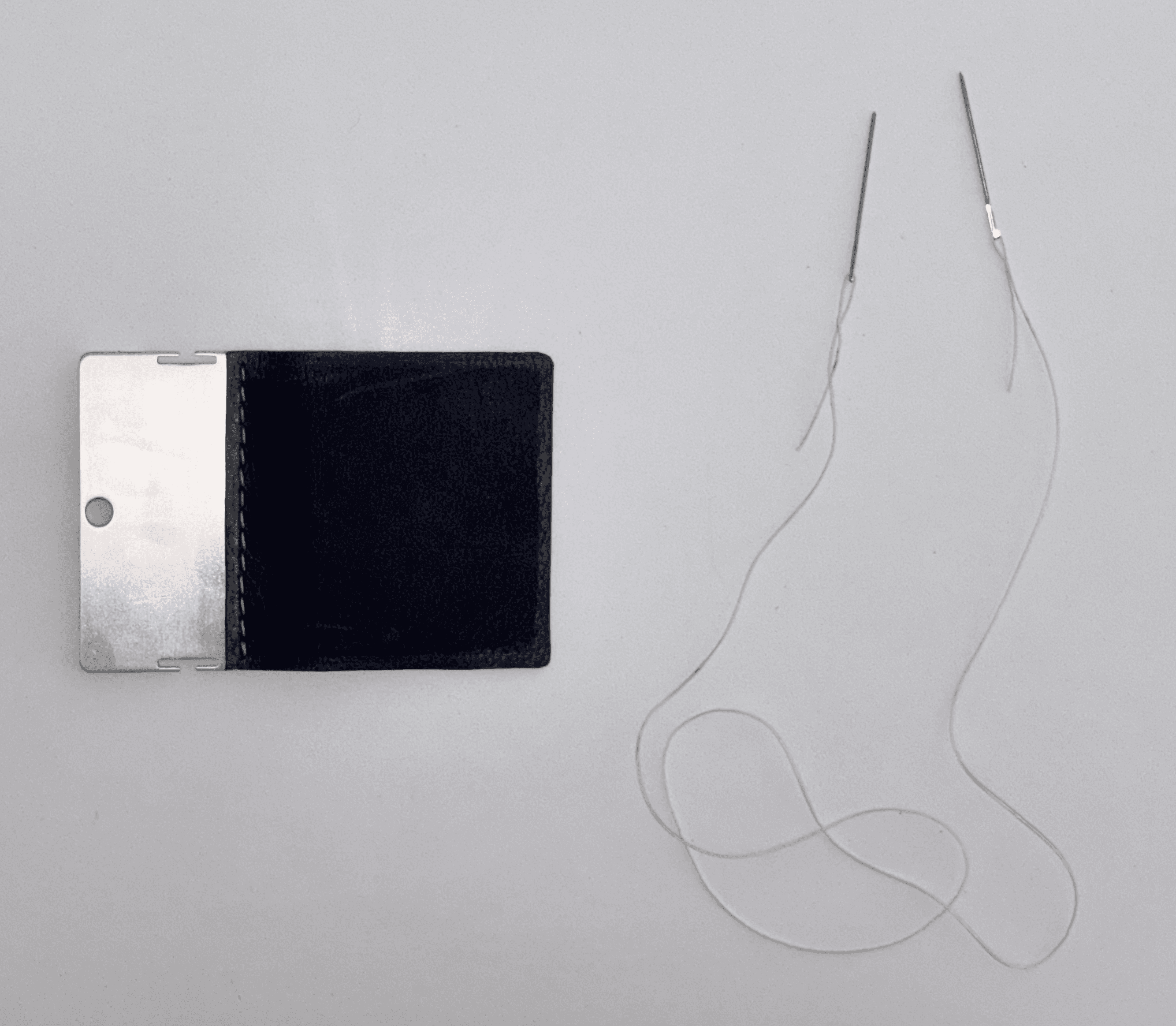

The leather is then shaped and cut. 2 needles and wax string is then used to hand stitch the leather to the base.

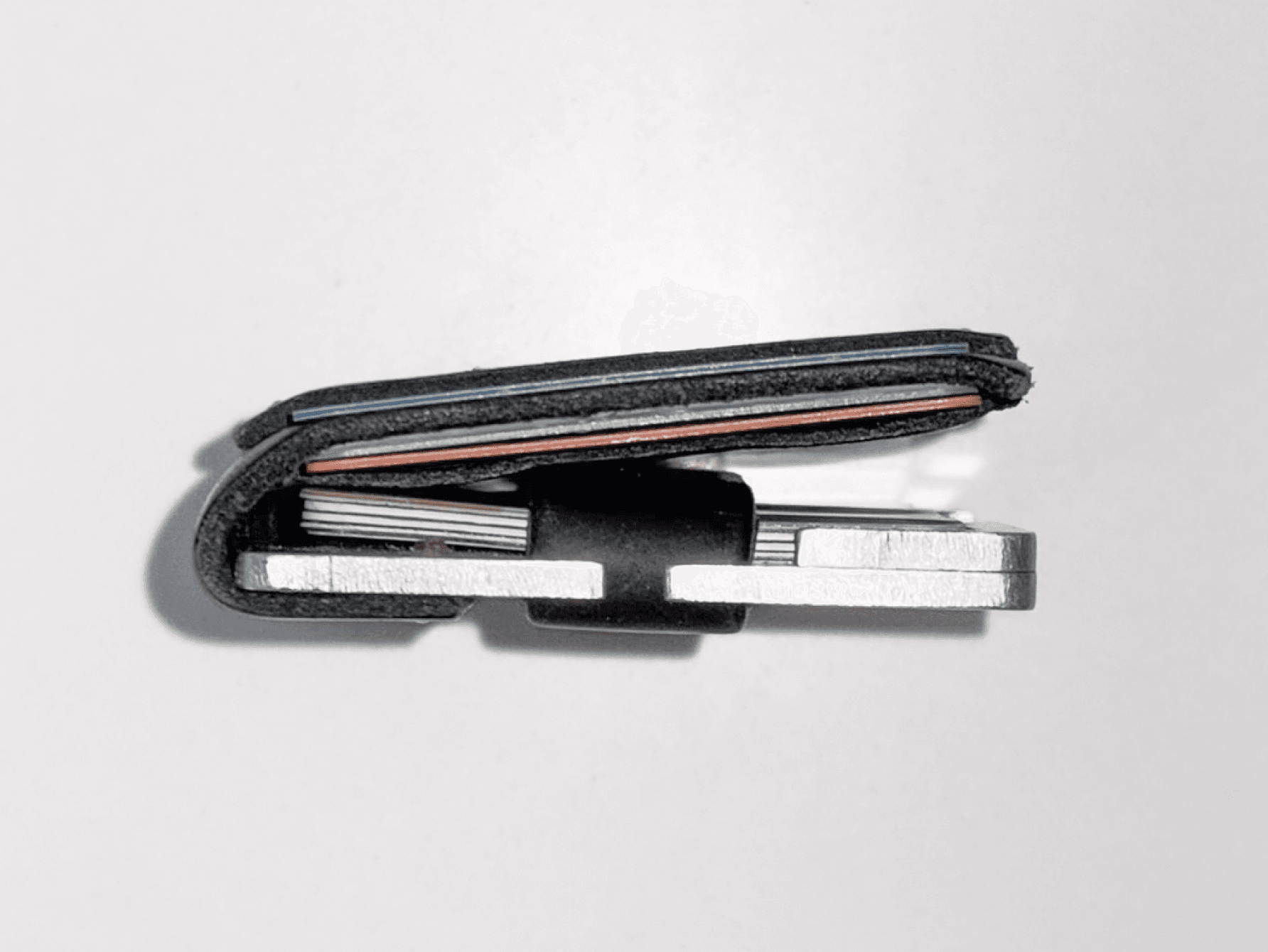

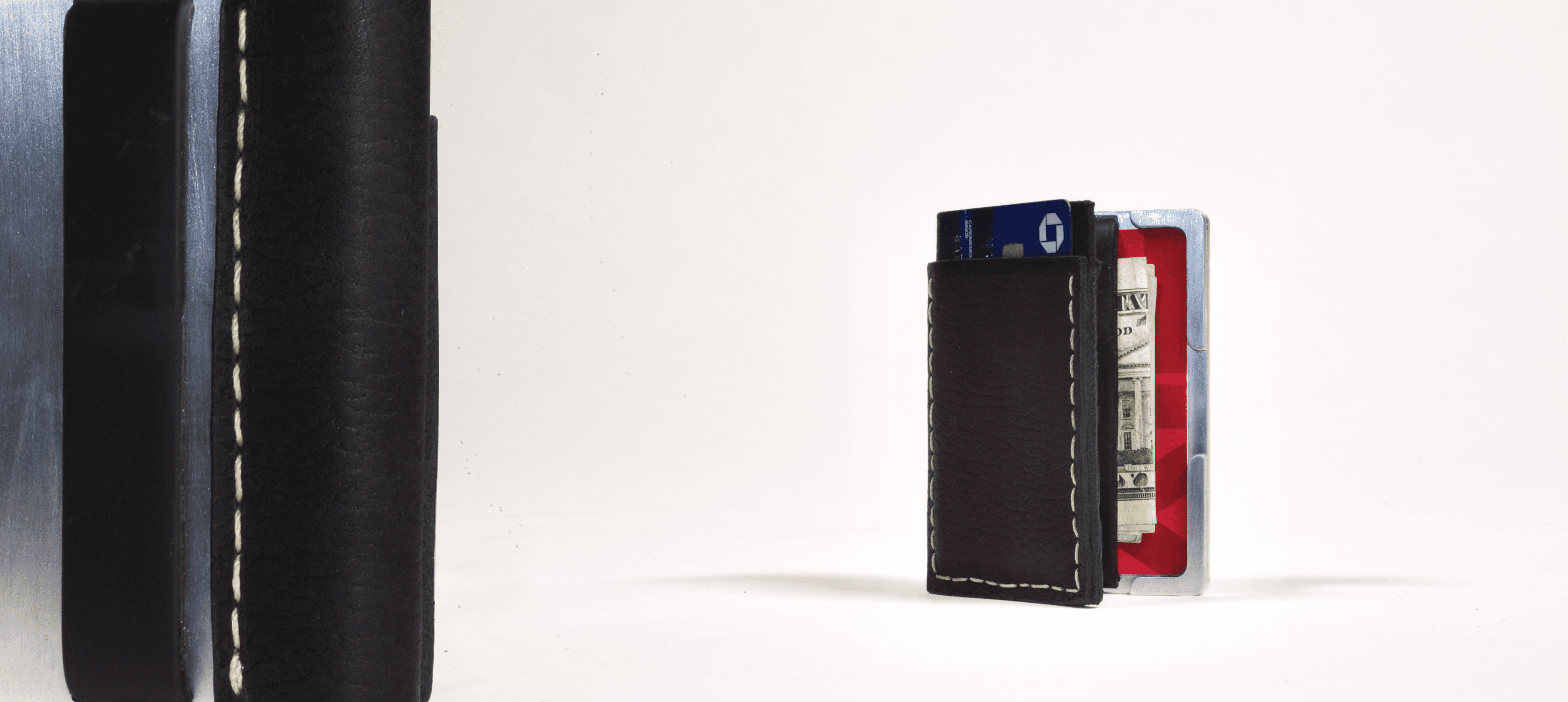

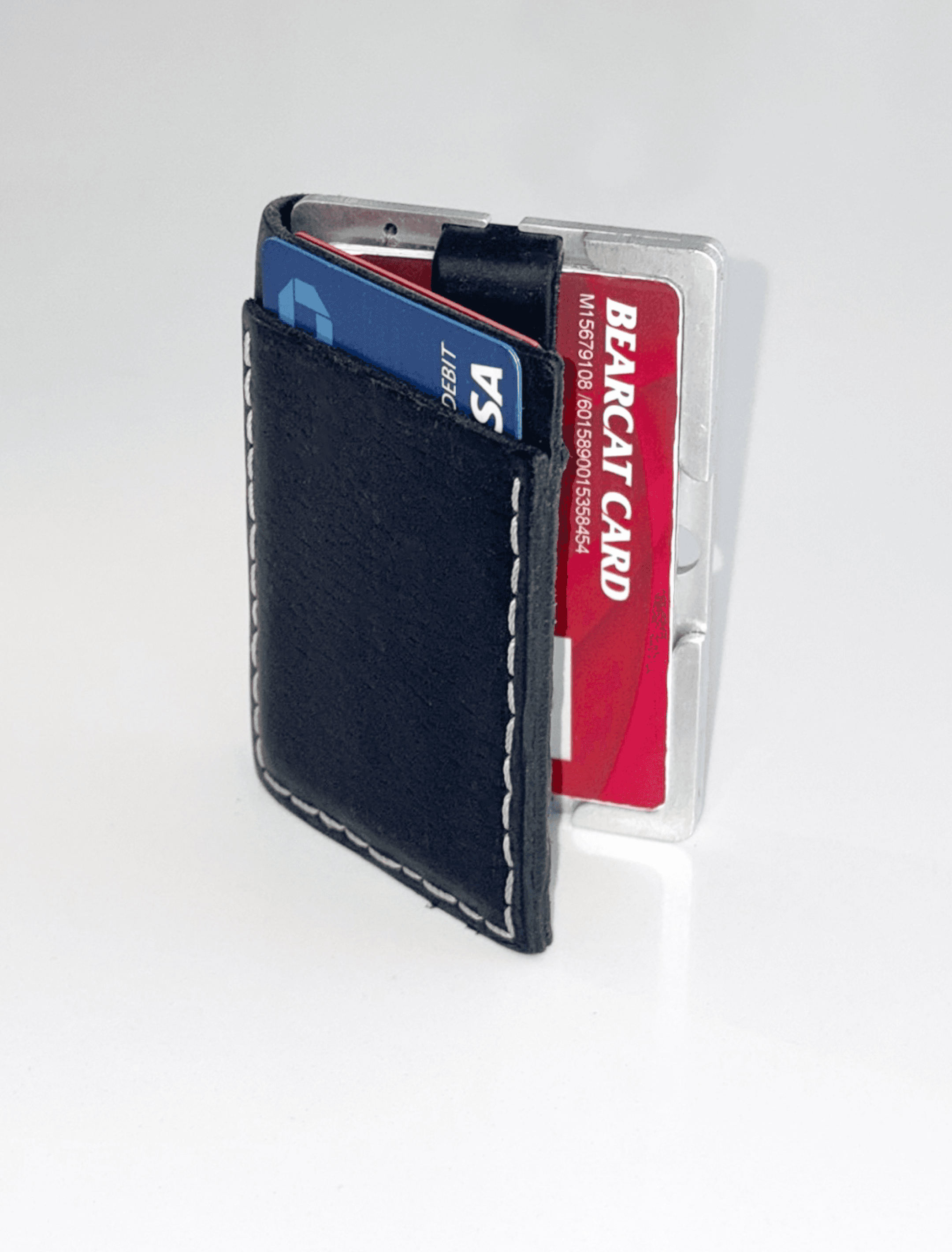

Only 3/4” in thickness
8 cards + cash recommended maximum

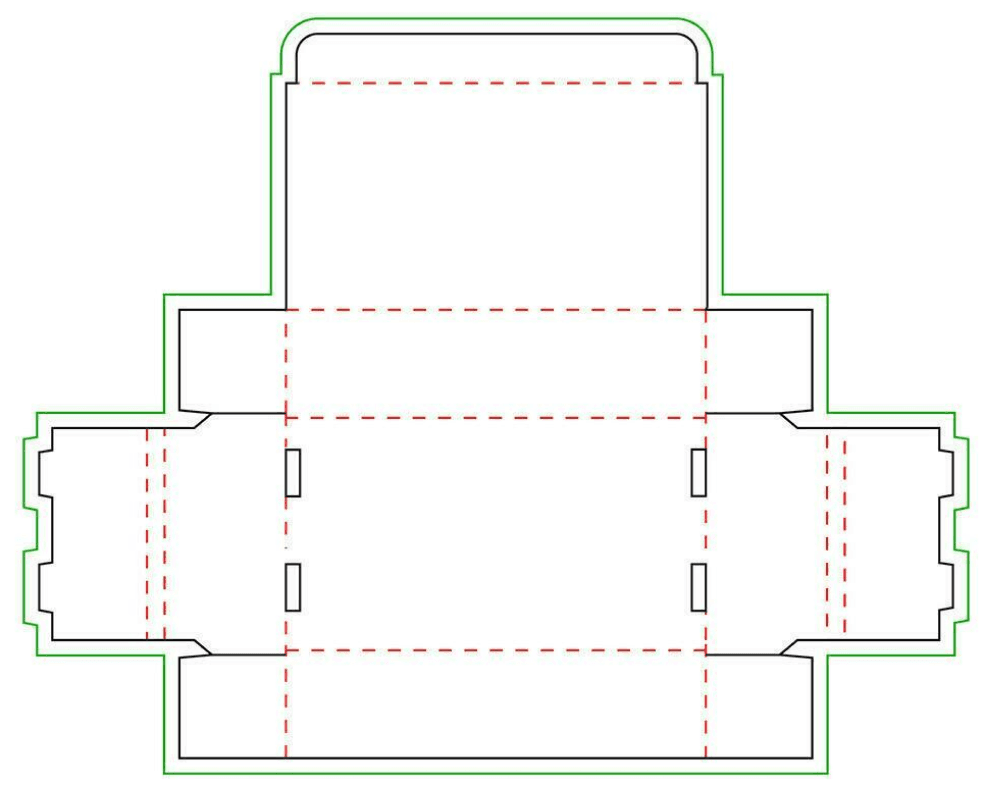

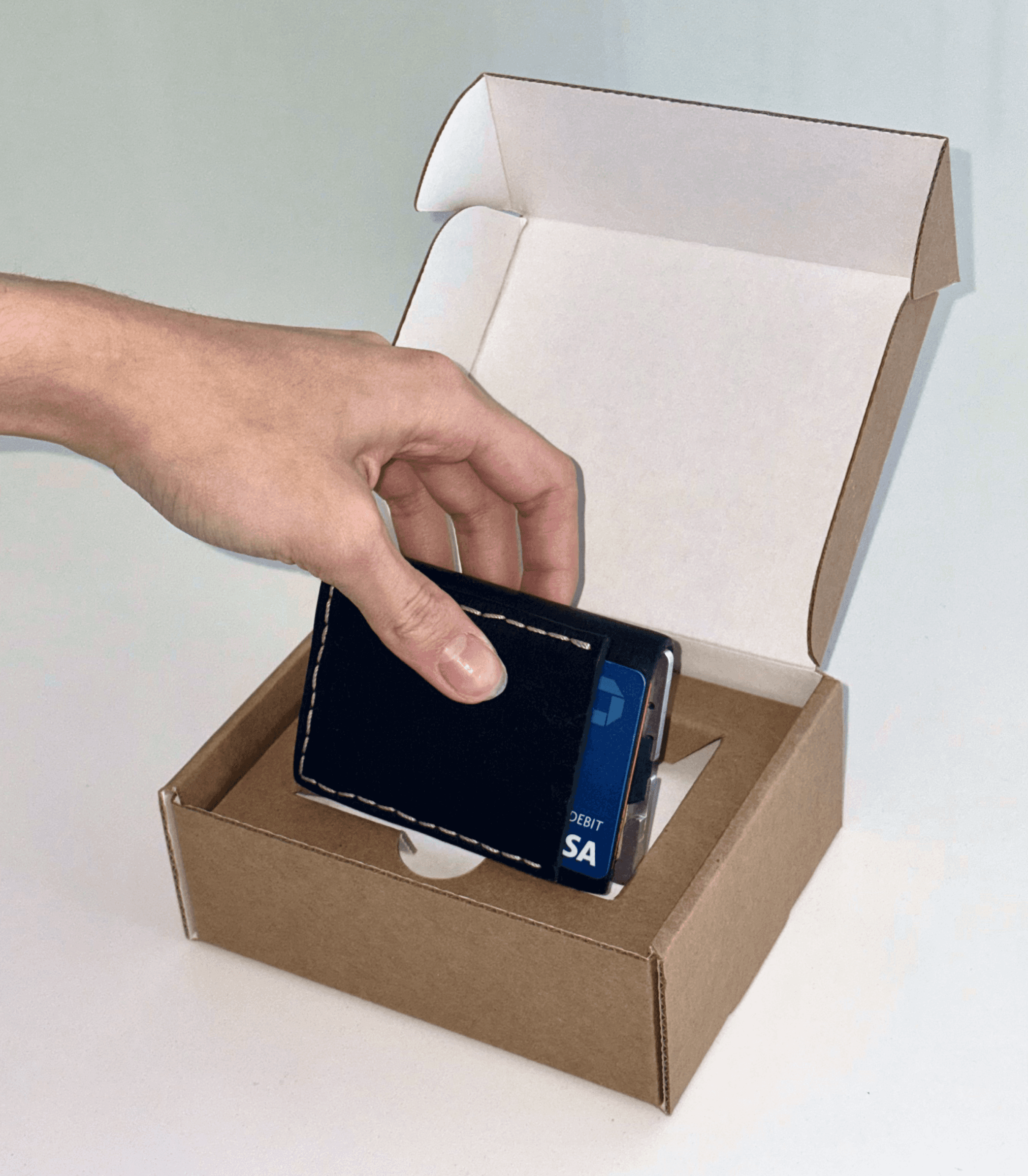

RETT style box
The insert was customized. In one piece, the insert holds the wallet in place with finger holes. Wallet does not slide around or come out unless grabbed.
